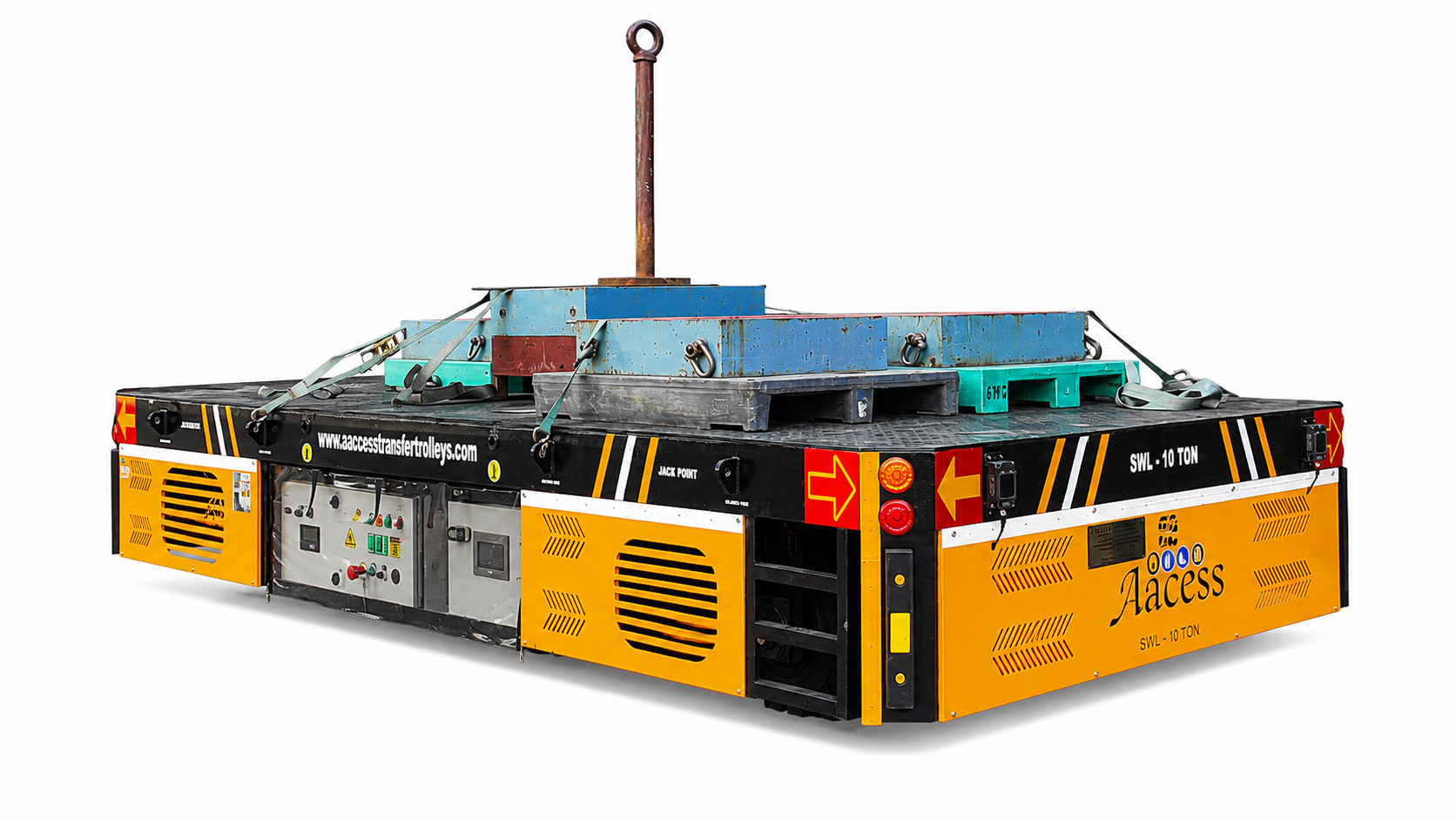

Battery Operated 90o Rotational Trolley

Product Description :

Aacess Equipments presents Battery Operated 90 degrees rotational trolley. Battery Operated Trolleys are simple to operate and also can carry heavy loads from any part of the factory to another part of the factory. The trolley has three modes of operation. Mode 1 where it operates forward & reverse condition. Mode 2 moves 35 degrees right and left. Mode 3 the trolley takes a turn of 90 degrees right and left. Our products are customizable according to the customer's preference. Our battery operated trolley features customizable platform sizes to meet your specific needs. The maintenance involved in these trolleys are very minimal. The battery-operated trolleys are powered by Lead Acid or Lithium Ion Batteries. These trolleys are powered by high-end controllers. They come with solid rubber tires, offering superior performance.

Technical Specifications

Capacity

From 1 Ton to 600 Ton

Dimensions

Can be Customised

Power Supply

Battery, Electrical, Diesel

Travel Distance

5 - 25 Kms on Full Load

Battery Types

Lead acid Traction Duty, Lithium Ion

Battery Charger

Smart Charger with Automatic Cut off Single Phase / 3 Phase

Travel Speed

Can be Customised (Normal Speed Given 25 - 30 KMPH)

Operation Control

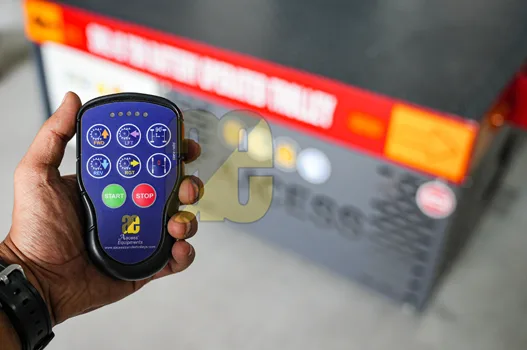

Pendant Control, Remote (RRC – Radio Resource Control)

Drive Mechanism

Single Drive / Twin Drive

Type of Floor

Epoxy / Road / VDF Flooring

No. of Wheels

4/6/8/10/12/20

Slope Gradient

1 : 25

Operating Environment

Indoor & Outdoor

Automatic Version – RGV

On Request

Battery Capacity

Can be Customised

Colour

Customized

Charging Time

Can be Customisable (Normal Time 7-8 hrs)

Type of Wheels

Solid Rubber Tyres, PU – Coated Tyres

Safety Features

Human Sensors

Low battery Indicator

Beacon light

Emergency Cut – off & Buzzer
