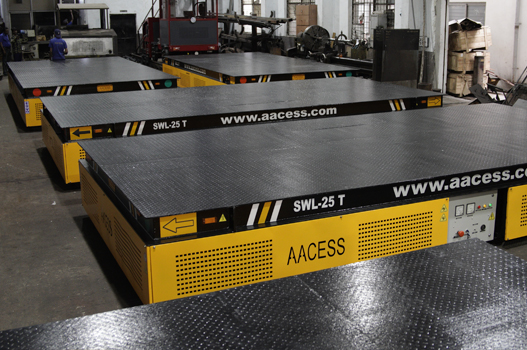

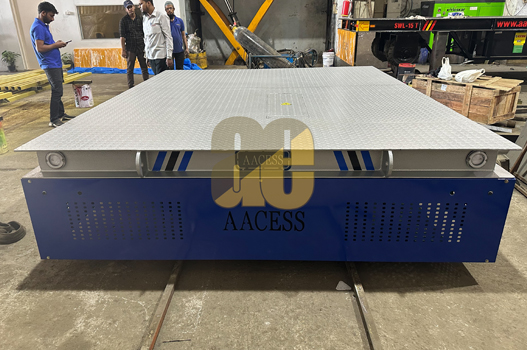

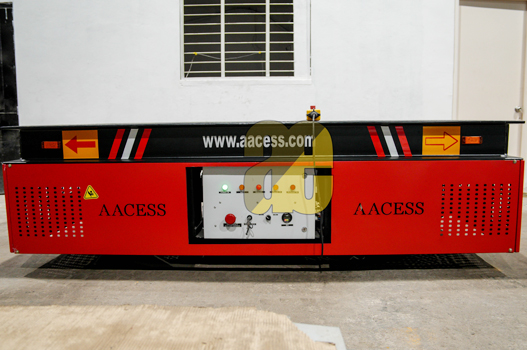

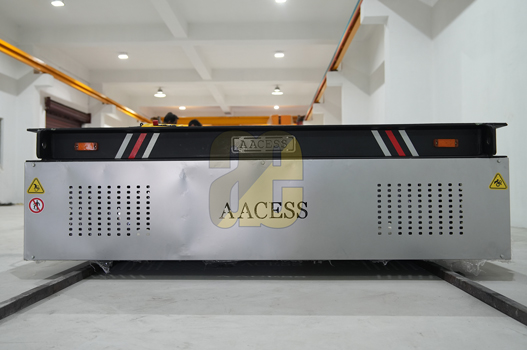

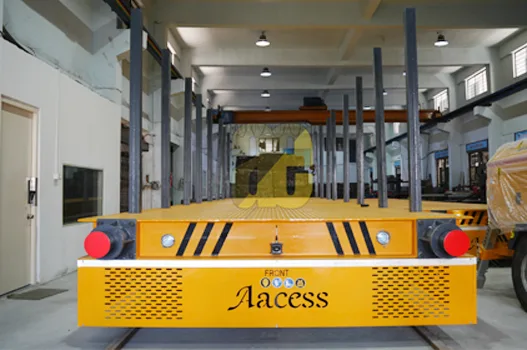

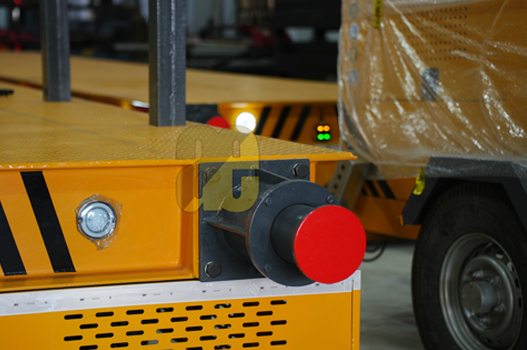

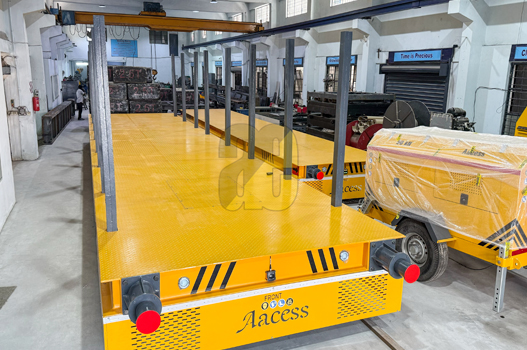

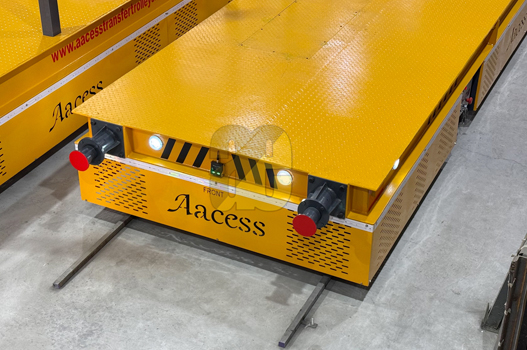

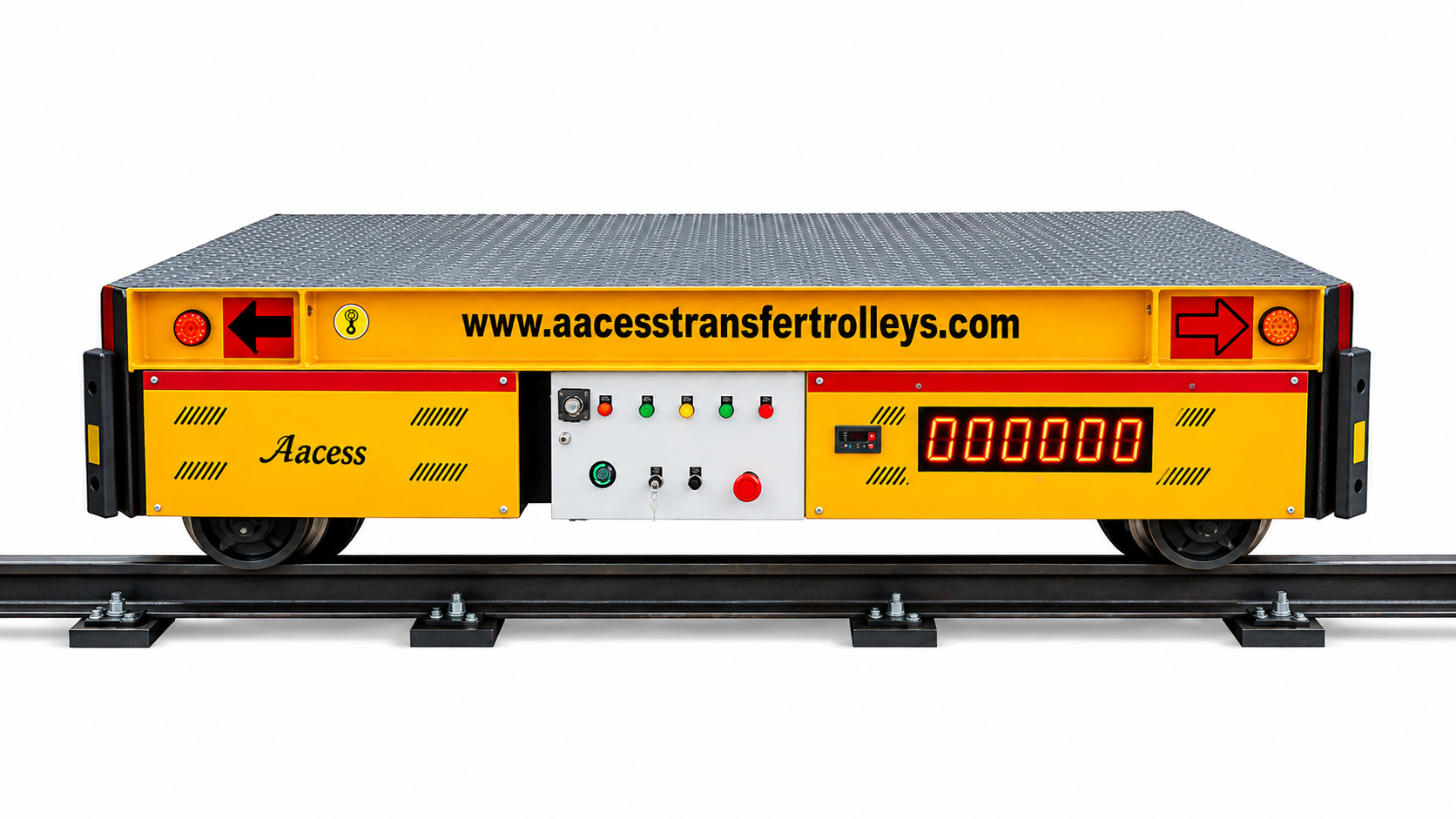

Battery Operated Rail Guided Trolley

Alt Alt Alt Alt
Alt Alt Alt Alt

Product Description

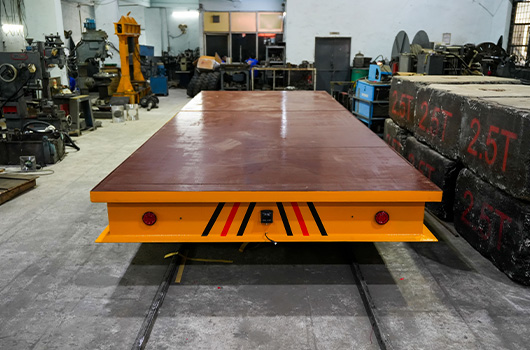

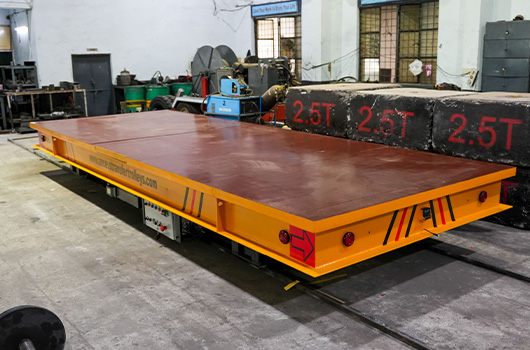

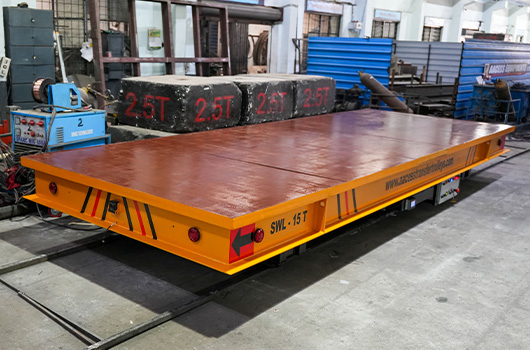

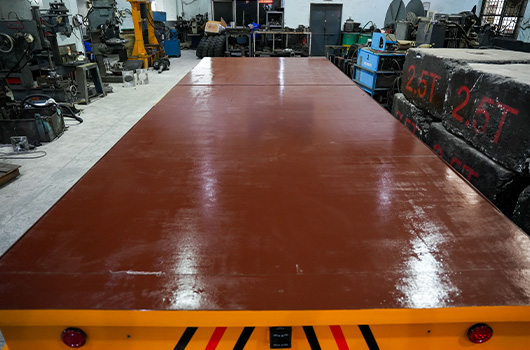

Battery Operated Rail Trolley provides easy transportation of goods or materials without the need for manual pushing or pulling in a variety of heavy-duty fields where moving on rails is required and production cycles are regular both time-wise and route-wise. It eliminates the physical strain on workers, making it a convenient and efficient solution for moving heavy loads. It improves productivity, allowing for a faster and more efficient workflow. Battery-operated Rail-guided Trolleys produce zero emissions, contributing to a cleaner and healthier working environment. Aacess offers a modern cart on rails to respond to rapid changes in the metalworking industry and other industries to reshape their logistics.

The advantages of AACESS Battery Operated transfer trolley

  • Safe and reliable
  • Simplified operation i.e. Trolley moves in Forward & Reverse Direction only
  • Consumption of power from the battery is very low thereby increasing the working time of the vehicle
  • Heavy loads with low power consumption can be transferred easily
  • Less moving parts thereby reducing the maintenance cost
  • Trolleys/Carts are wireless i.e. No wires hanging
  • No External power source needed
  • High-temperature resistance
  • Strong impact resistance
  • Remote control and variable Speed
  • Pollution Free
  • Maintenance Free

The most popular areas where our cart solutions are used

  • Connection between several bays in industrial buildings
  • Connection between buildings and store yards
  • Connection between plant and department
  • Reducing the eot crane’s workload in bays

Technical Specifications

Capacity

From 1 Ton to 1000 Ton

Dimensions

Can be Customised

Power Supply

Battery, Electrical, Diesel

Travel Distance

5 - 20 Kms on Full Load

Battery Types

Lead acid Traction Duty, Lithium Ion

Battery Charger

Smart Charger with Automatic Cut off Single Phase / 3 Phase

Travel Speed

Can be Customised (Normal Speed Given 25 - 30 KMPH)

Operation Control

Pendant Control, Remote (RRC – Radio Resource Control)

Drive Mechanism

Single Drive / Twin Drive

Type of Wheels

EN9 Forged, Swivelling

Type of Rail

Flat Footed Rails, C – Rail, S- Rail

No. of Wheels

4/6/8/10/12/20

Lifting Platform

Can be Customised

Operating Environment

Indoor & Outdoor

Automatic Version – RGV

On Request

Battery Capacity

Can be Customised

Charging Time

Can be Customisable (Normal Time 7-8 hrs)

Colour

Customized

Safety Features

Human Sensors

Low battery Indicator

Beacon light

Emergency Cut – off & Buzzer
