Product Description

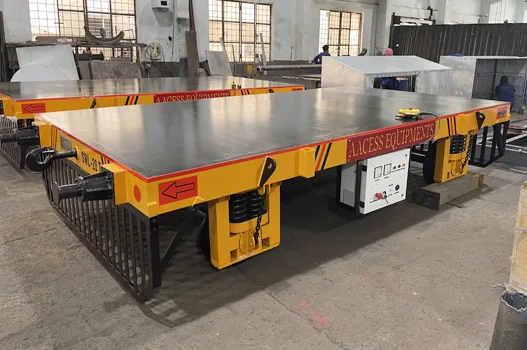

Aacess manufactures the hot molten transfer car which is specially designed for steel industries and foundries worldwide. It is designed to withstand a high temperature and to safely transport the hot liquid metal from one location to another. Hot ladle transfer carts play an important role in the industries, as they help to maintain a smooth and safe flow of material throughout the plant. This trolley load can be customized. They are developed with a high-temperature sensor on the ladle transfer car with a screen for the remote controller. Aacess offers a modern cart to respond to rapid change in all industries to reshape its logistics.
- Customised load capacity
- Optional table Size
- Optional power source
- Optional working method (rail or floor)
- Box grid Structure
- Customizes System (lifting, weighing)
- Optional Control System
- Safety System
Technical Specifications
Capacity
From 1 Ton to 200 Ton
Dimensions
Can be Customised
Power Supply
Battery, Electrical, Diesel
Travel Distance
5 - 25 Kms on Full Load
Battery Types
Lead acid Traction Duty, Lithium Ion
Battery Charger
Smart Charger with Automatic Cut off Single Phase / 3 Phase
Travel Speed
Can be Customised (Normal Speed Given 25-30 KMPH)
Operation Control
Pendant Control, Remote (RRC – Radio Resource Control)
Drive Mechanism
Single Drive / Twin Drive
Type of Wheels
EN9 Forged Wheels
Type of Floor
Rail
No. of Wheels
4/6/8/10/12/20
Lifting Platform
Can be Customised
Operating Environment
Indoor & Outdoor
Automatic Version – RGV
On Request
Battery Capacity
Can be Customised
Charging Time
Can be Customisable (Normal Time 7-8 hrs)
Colour
Customized
